ASDFD5505-0001
ASDFD5505-0001

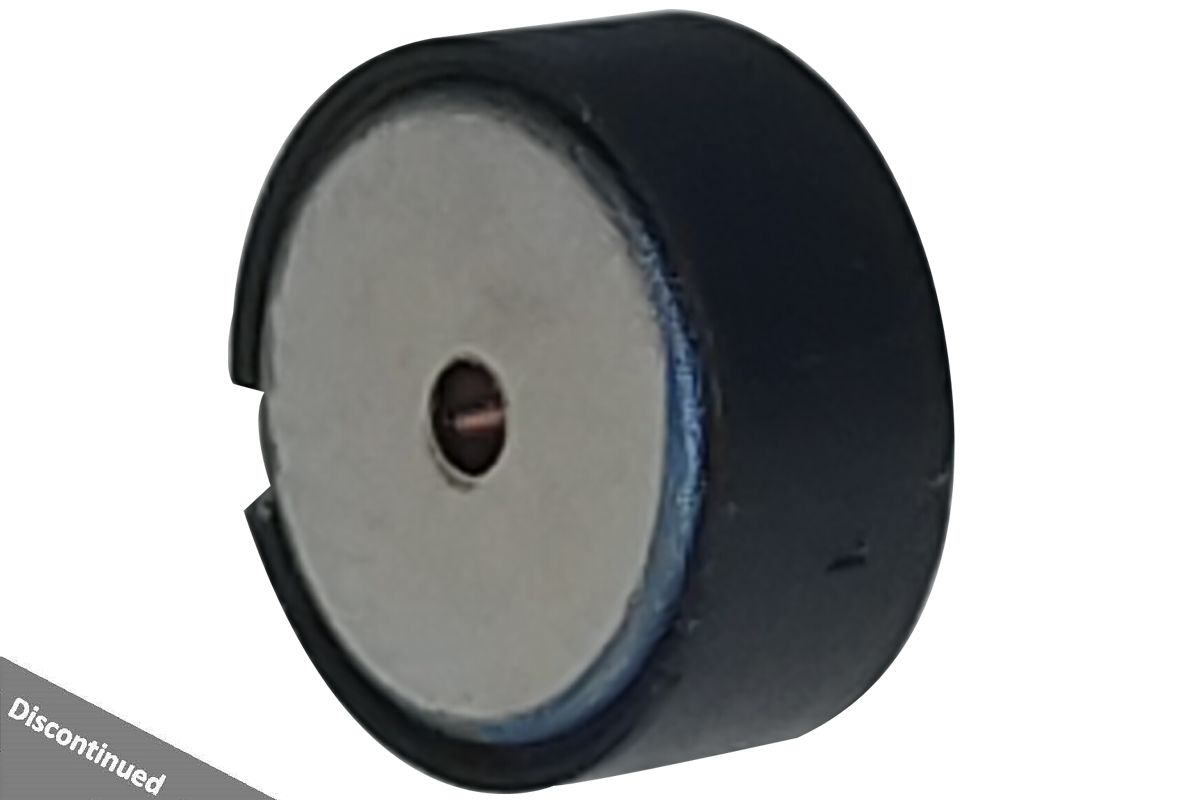

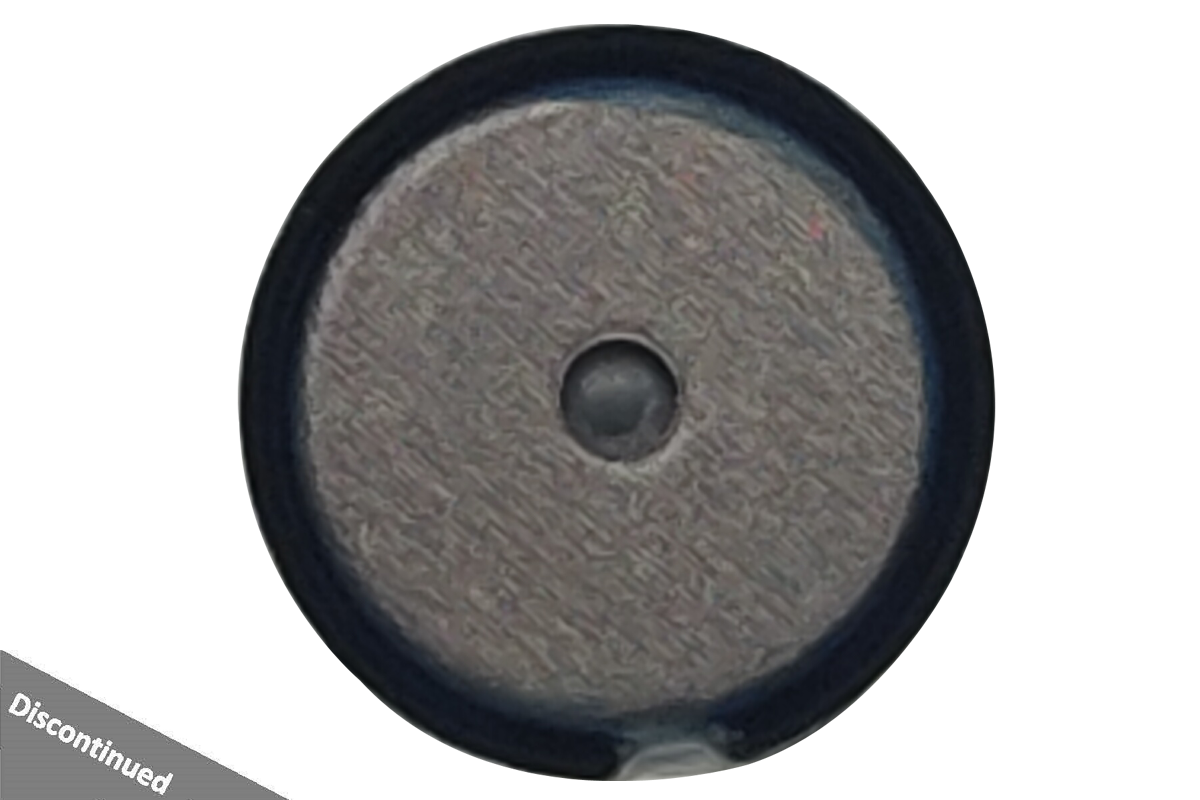

Headphone
8mm PEEK+TPU TWS

ASDFD5505-0001

Features
8mm Transducer Frame
3.1mm Voice Coil DCCA
10µPU+09µPEEK
Size
8 mm
Fs
400 Hz
Sensitivity
105 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

8 mm Transducer, the use of the magnetic circuit unibody design, application of the composite diaphragm, obtained the good effect of low frequency, and has a lower distortion, it is very suitable for TWS and the IN EAR headphones, impedance 16 Ω, USES the DCCA copper clad aluminum wire circle, promoted the high frequency of extending new and clarity.

Family
Range

Features
Transducer CY-Ω-C
Insert Molding NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave
