ASDFD000C-1601
ASDFD000C-1601

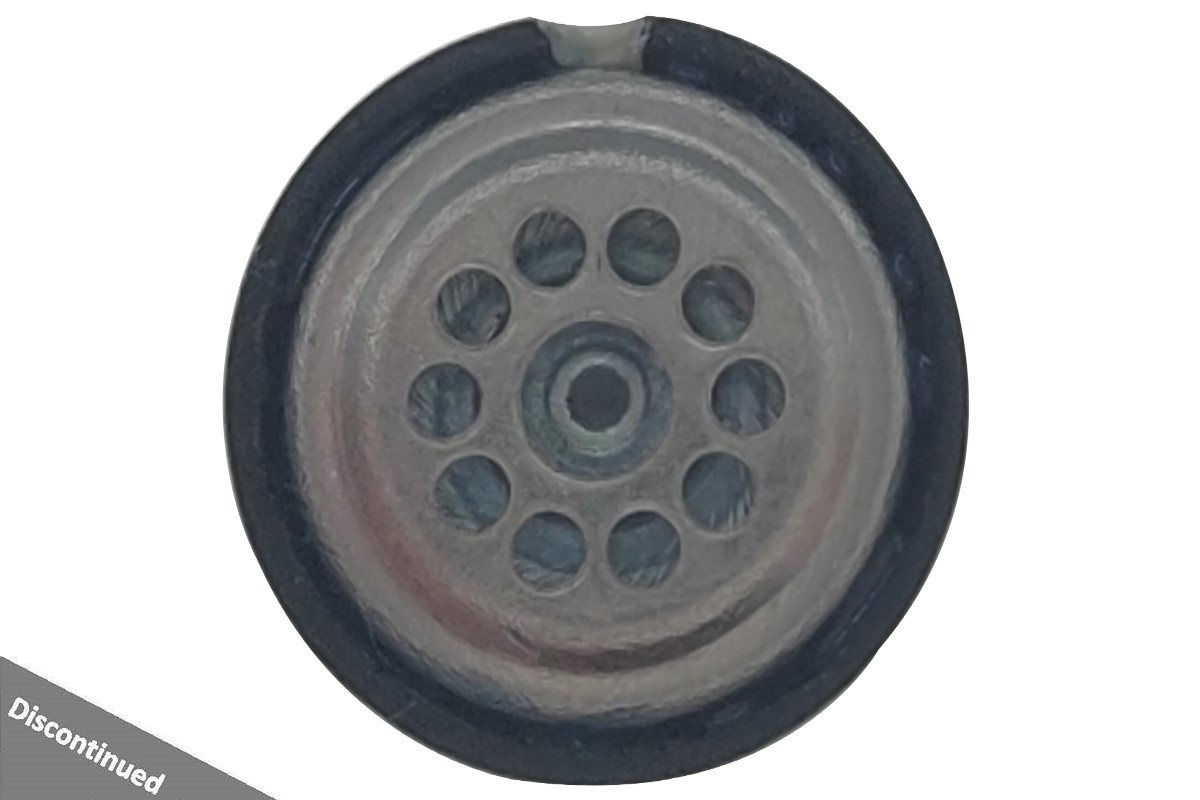

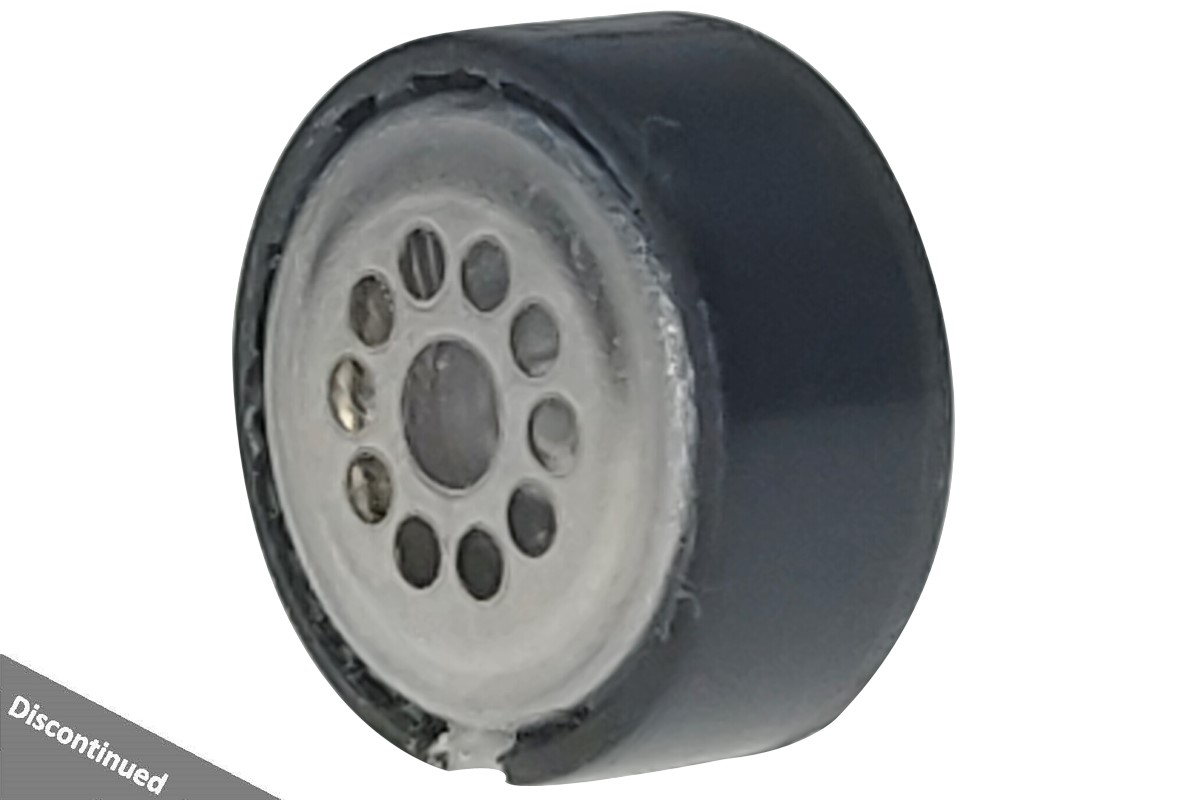

Headphone
10mm PEEK TWS

ASDFD000C-1601

Features
10mm Transducer Frame.
3.6Voice Coil DCCA.
06PEEKOA
Size
10 mm
Fs
350 Hz
Sensitivity
106 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This is a 10 mm Transducer, it is suitable for TWS and IN EAR headphones, impedance 16 Ω, USES the DCCA copper clad aluminum wire circle, promoted the high frequency of extending new and clarity, compact design makes it have low Distortion.

Family
Range

Features
Transducer CY-Ω-C
Insert Molding NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave
