0.5” Textile Dome Tweeter
FSB041510-0801
Features
0.5”, Plastic Face Plate
0.5” CCAW Voice Coil, Kapton Former
Textile Dome Diaphragm
Neodymium Magnet Motor System
High Sensitivity
Power Handling with 2nd HP Filter @ 8000Hz
Parameters
Size
0.5 Inch
Fs
2340 Hz
Re
6.78 Ohms
Sensitivity
89 dB
Quality Factor
2.32 Qts
Rated Power
15 W

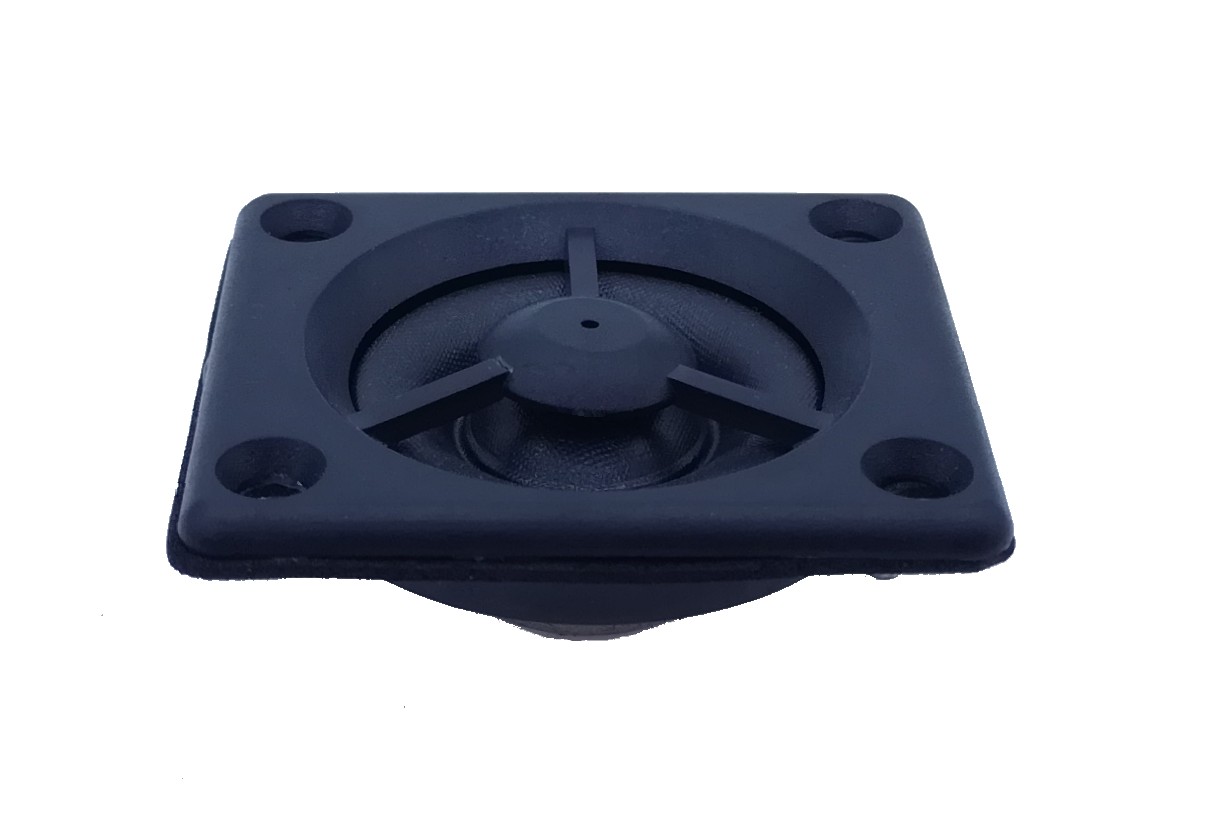

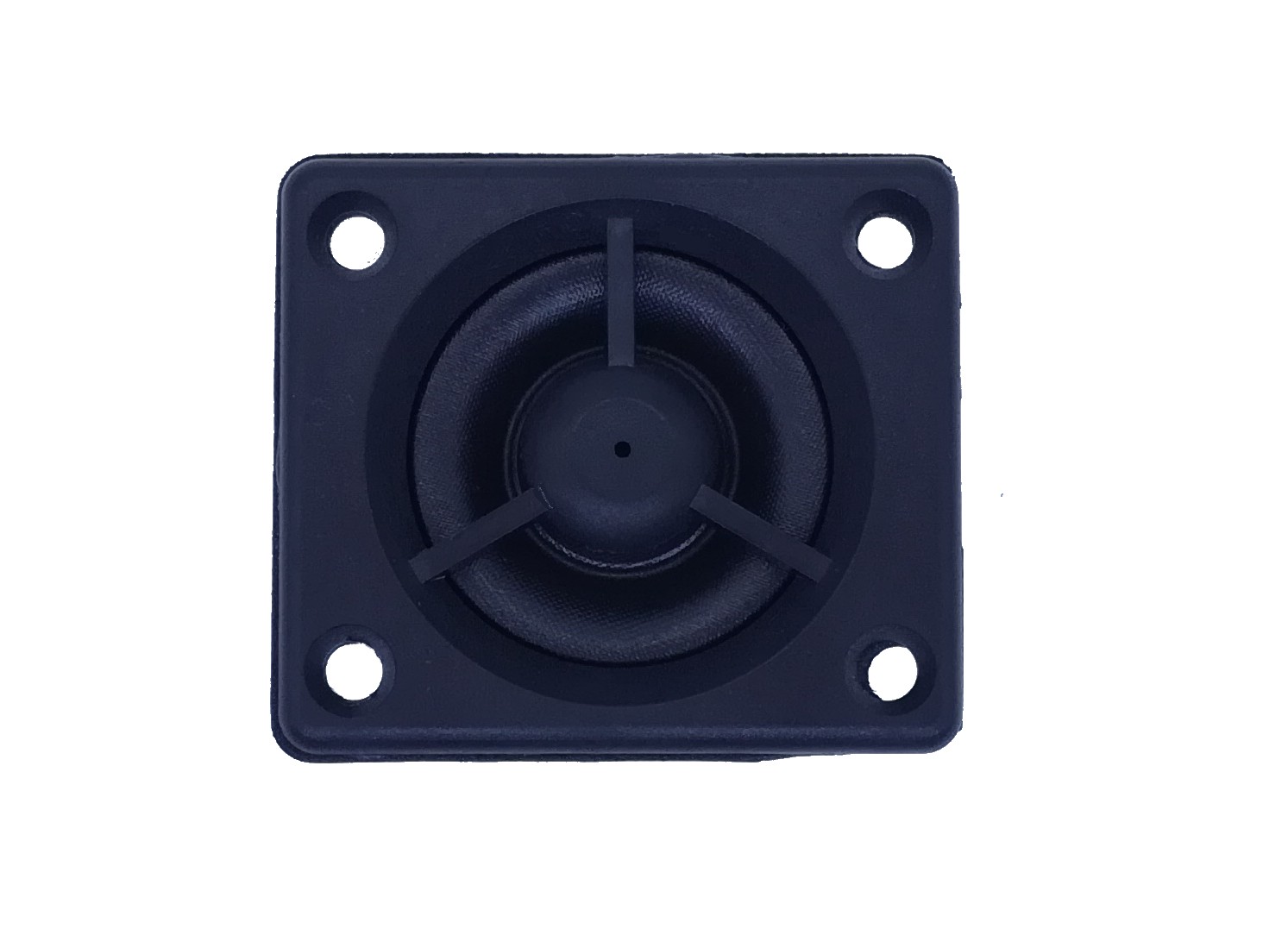

This is a 0.5 inch 8 ohm driver, it is a tweeter features 0.5 inch voice coil with CCAW. In term of suspension system, dome is consisted by textile material. In term of magnet motor system, magnet is consisted by Neodymium material. It can be used on Soundbar model.
Family
Range
| T-S Parameters | |
|---|---|
| Resonance frequency [fs] | 2340 Hz |
| Mechanical Q factor [Qms] | 2.59 |
| Electrical Q factor [Qes] | 21.89 |
| Total Q factor [Qts] | 2.316 |
| Force factor [Bl] | 0.516 Tm |
| Mechanical resistance [Rms] | 0.332 kg/s |
| Moving mass [Mms] | 0.059 g |
| Compliance [Cms] | 0.079 mm/N |
| Effective diaph. diameter [D] | 25 mm |
| Effective piston area [Sd] | 4.9 cm² |
| Equivalent volume [Vas] | 0.0027 l |
| Sensitivity (2.83V/1m) | 89 dB |
| Ratio Bl/√Re | 0.198 N/√W |
| Ratio fs/Qts | 1010.36 Hz |
| Electrical Data | |
|---|---|
| Nominal impedance [Zn] | 8 Ω |
| Minimum impedance [Zmin] | 7.2 Ω |
| Maximum impedance [Zo] | 6.3 Ω |
| DC resistance [Re] | 6.78 Ω |
| Voice coil inductance [Le] | 0.018 mH |
| Power Handling | |
|---|---|
| 100h RMS noise test (IEC 18.4) | 15 W |
| Long-term max power (IEC 18.2) | - W |
| Voice Coil & Magnet Data | |
|---|---|
| Voice coil diameter | 13.21 mm |
| Voice coil height | 2.0 mm |
| Voice coil layers | 2 |
| Height of gap | 1.5 mm |
| Linear excursion | ± 0.25 mm |
| Max mech. excursion | ± - mm |
| Unit weight | 0.015 kg |
