1.5" Aluminum Cone Fullrange

FSA010815-0300

Features
1.5", Plastic Frame
0.8" CCAW Voice Coil, Kapton Former
Aluminum Cone, Rubber Surround, Aluminum Center Cap
Dual Neodymium Magnet Motor System
Wide Frequency Range
Slim Design
Size
1.5 Inch
Fs
180 Hz
Re
2.45 Ohms
Sensitivity
83 dB
Quality Factor
0.5 Qts
Rated Power
8 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

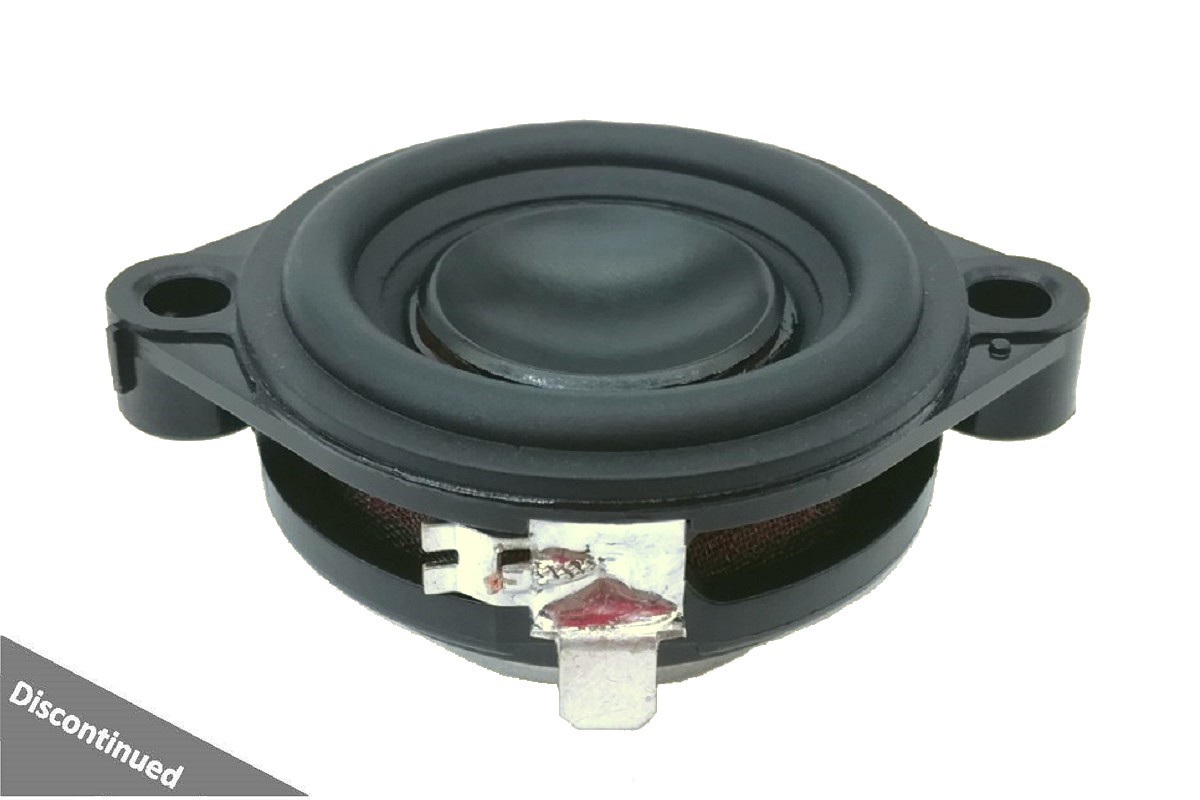

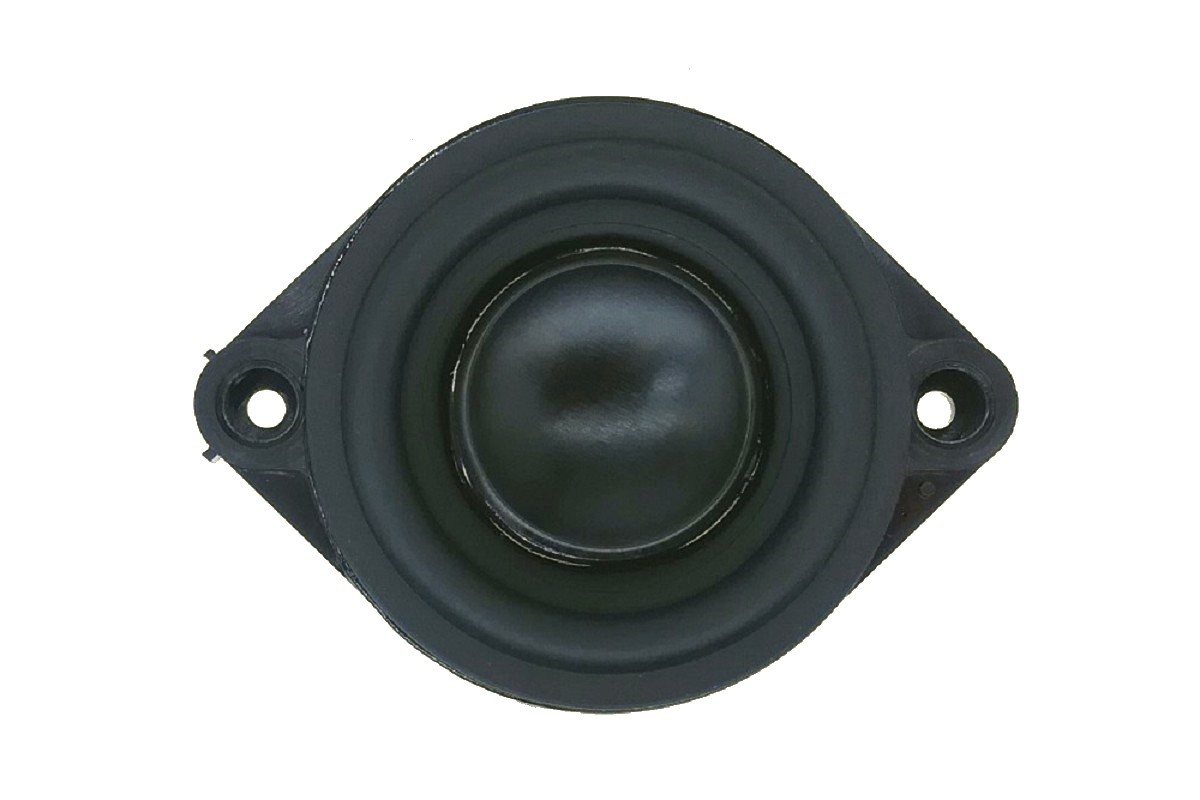

This 1.5 inch compact Fullrange driver slim design features an 0.8 inch voice coil, 4 layers CCAW, and a black anodized Aluminum cone along with anodized Aluminum center cap. It contains dual Neodymium magnet motor system which provides maximum flux in a compact package. The voice coil former vented hole so as to reduce air compression effects.

Family
Range
Characteristics
FSA010815-0300

T-S Parameters
Resonance frequency [fs] 178 Hz
Mechanical Q factor [Qms] 7.212
Electrical Q factor [Qes] 0.548
Total Q factor [Qts]  0.509
Force factor [Bl] 3.016 Tm
Mechanical resistance [Rms] 0.282 kg/s
Moving mass [Mms]  1.87 g
Compliance [Cms] 0.439 mm/N
Effective diaph. diameter [D]  33 mm
Effective piston area [Sd] 8.55 cm²
Equivalent volume [Vas] 0.046 l
Sensitivity (2.83V/1m)  83 dB
Ratio Bl/√Re 1.93 N/√W
Ratio fs/Qts 350 Hz
Electrical Data
Nominal impedance [Zn]  3 Ω
Minimum impedance [Zmin]  2.756 Ω
Maximum impedance [Zo] 21.375 Ω
DC resistance [Re] 2.45 Ω
Voice coil inductance [Le]  0.108 mH
Power Handling
100h RMS noise test (IEC 18.4) 8 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 20.32 mm
Voice coil height 4.4 mm
Voice coil layers 4
Height of gap 1.5 mm
Linear excursion ± 1.45 mm
Max mech. excursion ± 2.5 mm
Unit weight 0.055 kg
