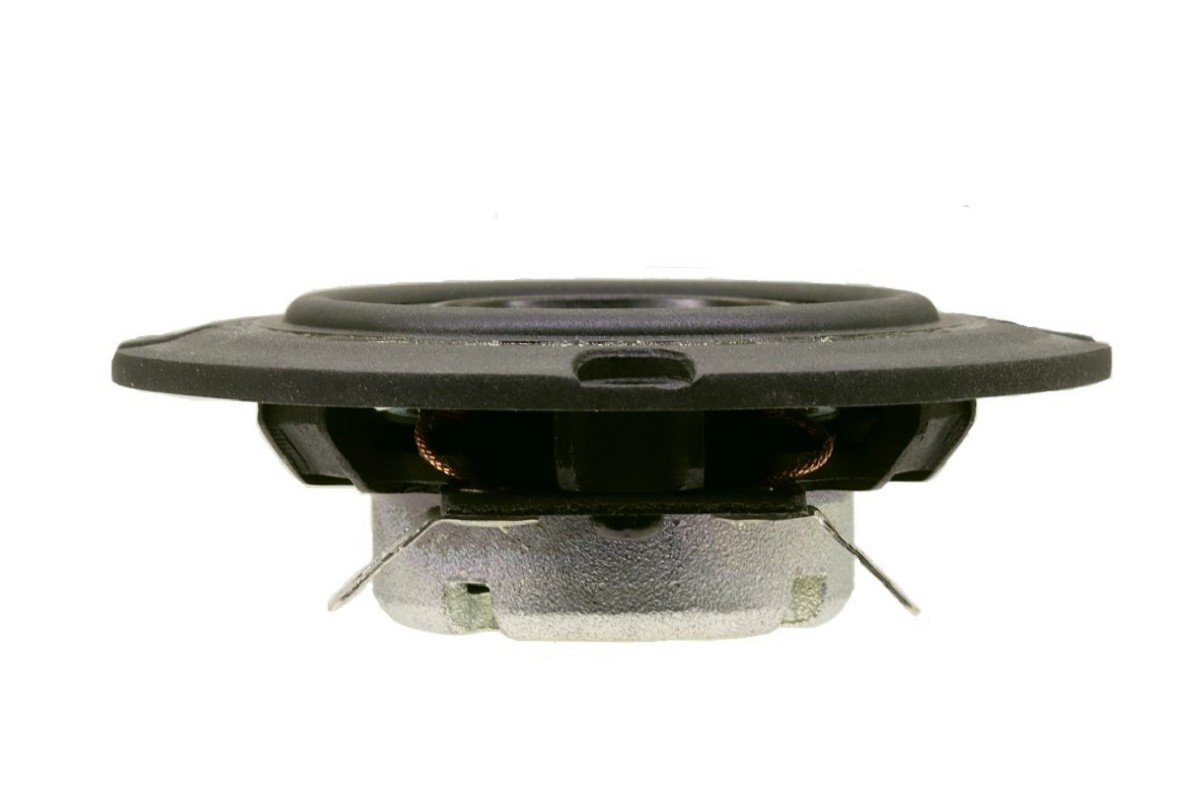

2" Ultra-Thin Series Woofer

AUGWL0005-JN01

Feature
2", Plastic Frame
1" CCAW Voice Coil, Aluminum Former
Aluminum Cone, Dual Rubber Surround
Neodymium Magnet Motor System
Spider-less, Slim Design (Patented)
Pole Piece Vent, Low Distortion(<3%)
Size
2 Inch
Fs
240 Hz
Re
3 Ohms
Sensitivity
82 dB
Quality Factor
0.57 Qts
Rated Power
10 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

A dual suspension(patented) driver, with elimination of the limits from traditional single suspension driver, resulted in more diverse and slim design. This 2 inch 3 ohm compact driver features the dual rubber surround and black anodized Aluminium cone. The voice coil former and pole piece are vented hole so as to reduce air compression under high excursion condition.

Family
Range
AUGWL0005-JN01

T-S Parameters
Resonance frequency [fs] 236.8 Hz
Mechanical Q factor [Qms] 2.321
Electrical Q factor [Qes] 0.752
Total Q factor [Qts]  0.568
Force factor [Bl] 4.239 Tm
Mechanical resistance [Rms] 2.589 kg/s
Moving mass [Mms]  4.038 g
Compliance [Cms] 3.966 mm/N
Effective diaph. diameter [D]  45 mm
Effective piston area [Sd] 15.9 cm²
Equivalent volume [Vas] 0.04 l
Sensitivity (2.83V/1m)  82 dB
Ratio Bl/√Re 2.826 N/√W
Ratio fs/Qts 416.9 Hz
Electrical Data
Nominal impedance [Zn]  3 Ω
Minimum impedance [Zmin]  2.6 Ω
Maximum impedance [Zo] 6.55 Ω
DC resistance [Re] 2.25 Ω
Voice coil inductance [Le]  0.252 mH
Power Handling
100h RMS noise test (IEC 18.4) 10 W
Long-term max power (IEC 18.2) 15 W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 7.0 mm
Voice coil layers 4
Height of gap 2 mm
Linear excursion ± 2.5 mm
Max mech. excursion ± - mm
Unit weight 0.101 kg
