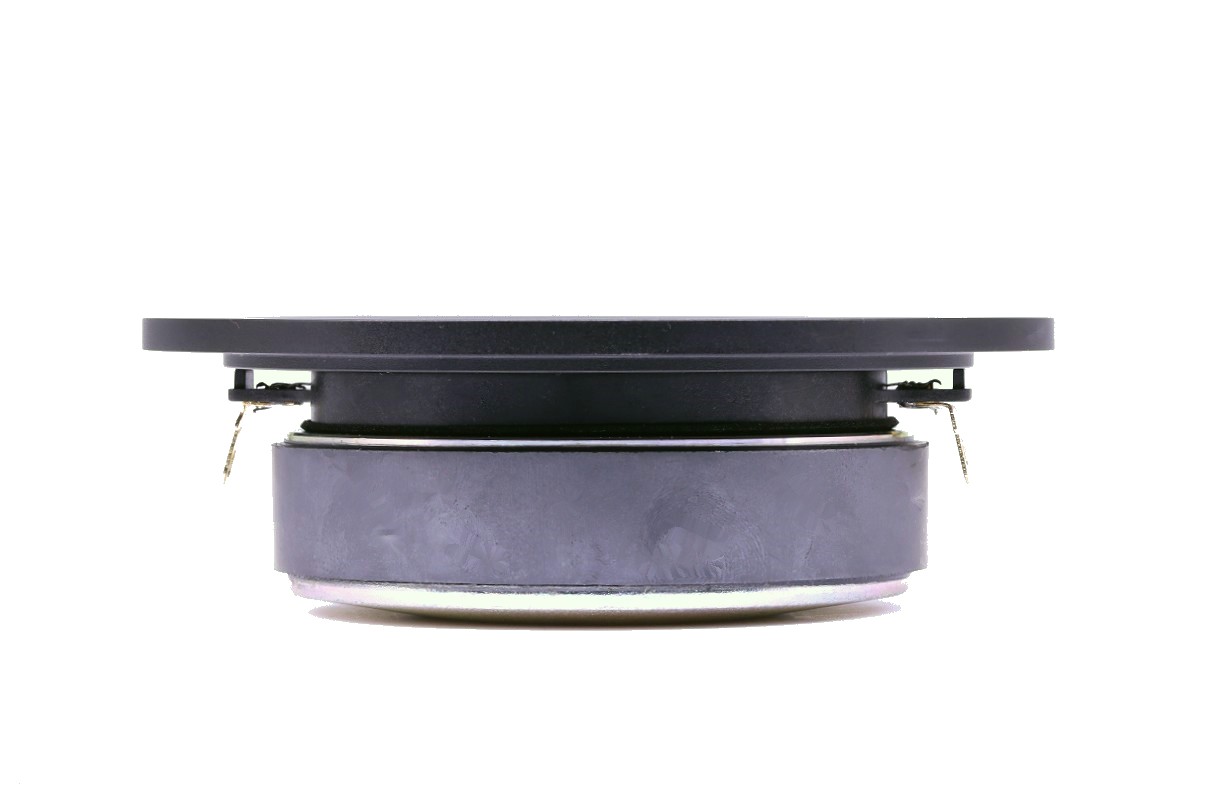

1" Textile Dome Tweeter

AUGDL2001-JN01

Feature
4", Plastic Front Panel
1" PSVCAW Voice Coil, Aluminum Former
Textile Dome Diaphragm
Ferrite Magnet Motor System
Size
1 Inch
Fs
710 Hz
Re
4 Ohms
Sensitivity
90 dB
Quality Factor
0.83 Qts
Rated Power
20 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

This 1 inch dome Tweeter features an 4 inch plastic front panel, CCAW voice coil and ferrofluid, which helps the driver dissipate heat. Silk dome with soft surround and ferrite magnet motor system not only achieve low distortion, but also the sound is clear and delicate.

Family
Range
AUGDL2001-JN01

T-S Parameters
Resonance frequency [fs] 711 Hz
Mechanical Q factor [Qms] 2.63
Electrical Q factor [Qes] 1.21
Total Q factor [Qts]  0.83
Force factor [Bl] 2.10 Tm
Mechanical resistance [Rms] 0.58 kg/s
Moving mass [Mms]  0.35 g
Compliance [Cms] 0.145 mm/N
Effective diaph. diameter [D]  28 mm
Effective piston area [Sd] 6.16 cm²
Equivalent volume [Vas] 0.0078 l
Sensitivity (2.83V/1m)  90 dB
Ratio Bl/√Re 1.13 N/√W
Ratio fs/Qts 856.6 Hz
Electrical Data
Nominal impedance [Zn]  4 Ω
Minimum impedance [Zmin]  3.45 Ω
Maximum impedance [Zo] 9.7 Ω
DC resistance [Re] 3.45 Ω
Voice coil inductance [Le]  0.01 mH
Power Handling
100h RMS noise test (IEC 18.4) 20 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 2.1 mm
Voice coil layers 2
Height of gap 2.1 mm
Linear excursion ± 0.2 mm
Max mech. excursion ± - mm
Unit weight 0.66 kg
