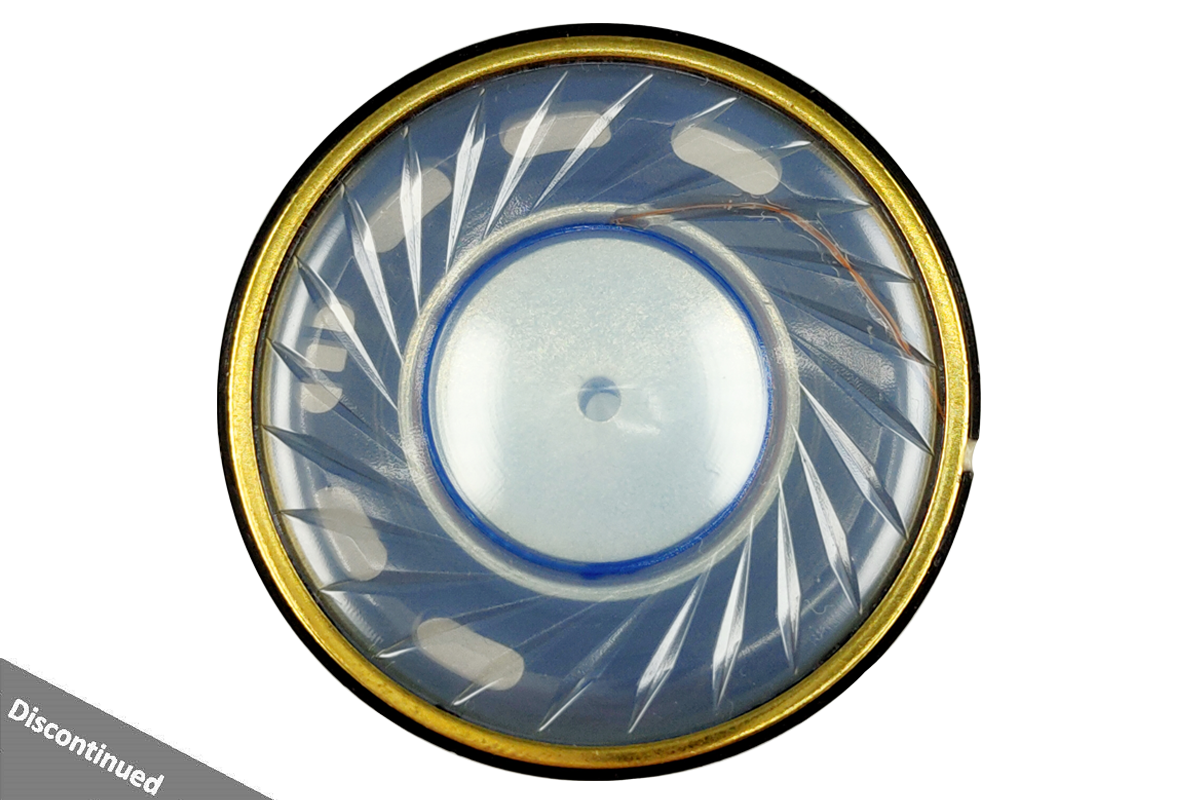

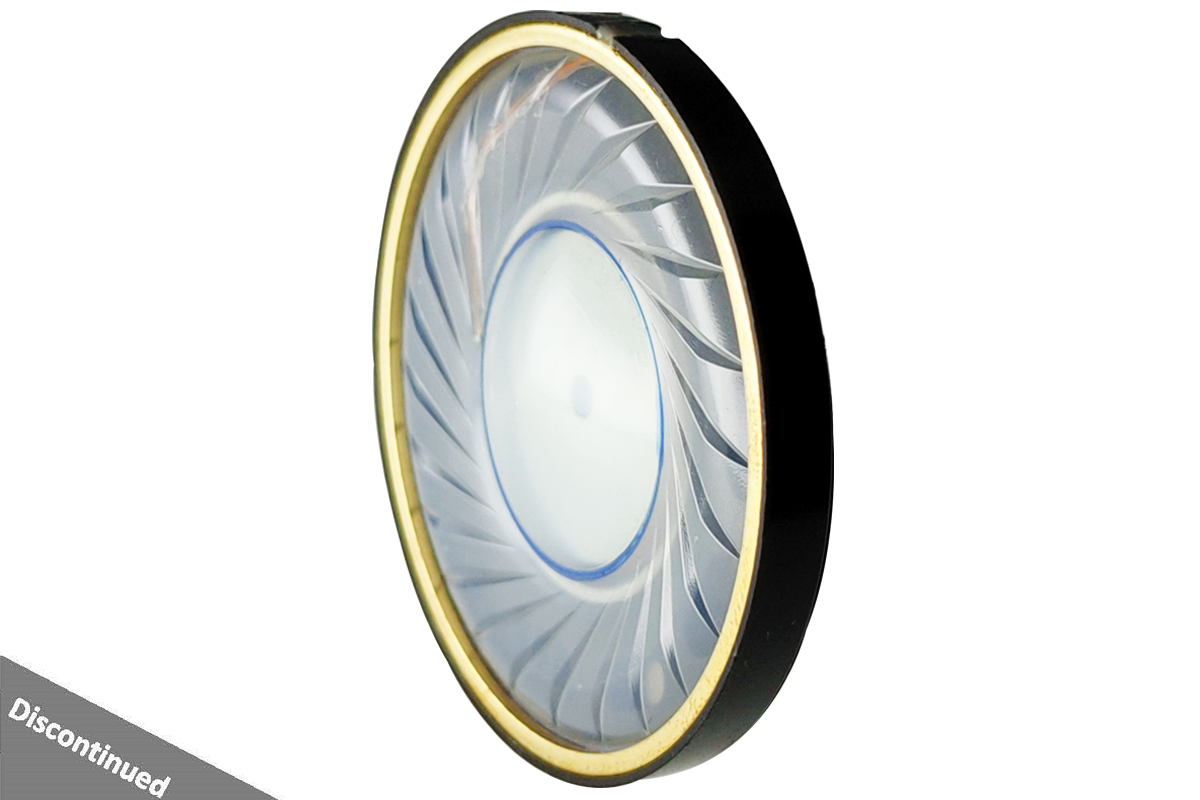

FSBB10040-0B12
FSBB10040-0B12
Headphone
40mm PEEK Over Ear

FSBB10040-0B12

Features
40mm Transducer Frame.
16.28mm Voice Coil DCCA.
25µPEEK.
Size
40 mm
Fs
130 Hz
Sensitivity
120 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

The sound film is designed with imported PEEK.Because PEEK has a high Young's modulus, the membrane shell has a high inhibition effect in the high frequency part, which is very significant.Therefore, the finished earphone made by this speaker has a significant voice clarity in the high pitch and voice part.

Family
Range

Features
Transducer CY-Ω-C
Insert Molding NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave



FSBB10040-0B12
