FSBB10015-0A11
FSBB10015-0A11
Headphone
14.2mm PEN TWS

FSBB10015-0A11

Features
14.2mm Transducer Frame.
7.4mm Voice Coil DCCA.
09μPEN Diaphragm.
Size
14.2 mm
Fs
280 Hz
Sensitivity
92 dB
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

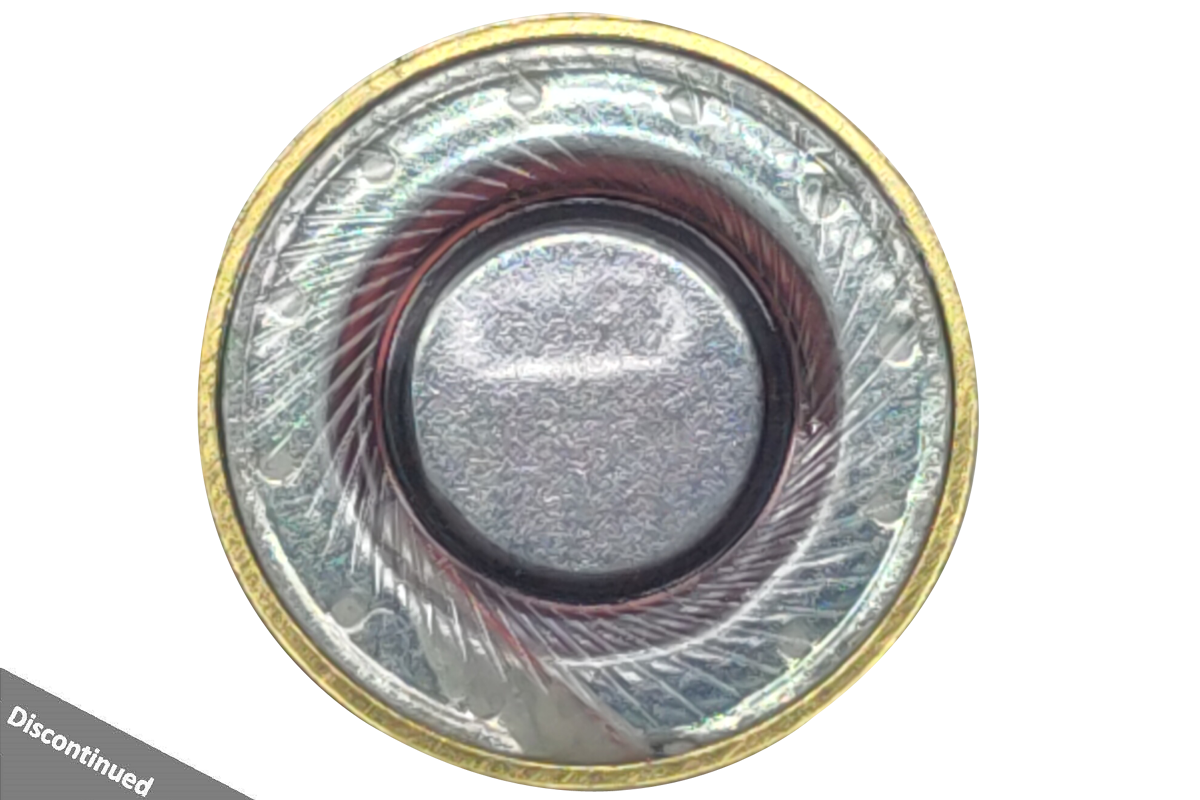

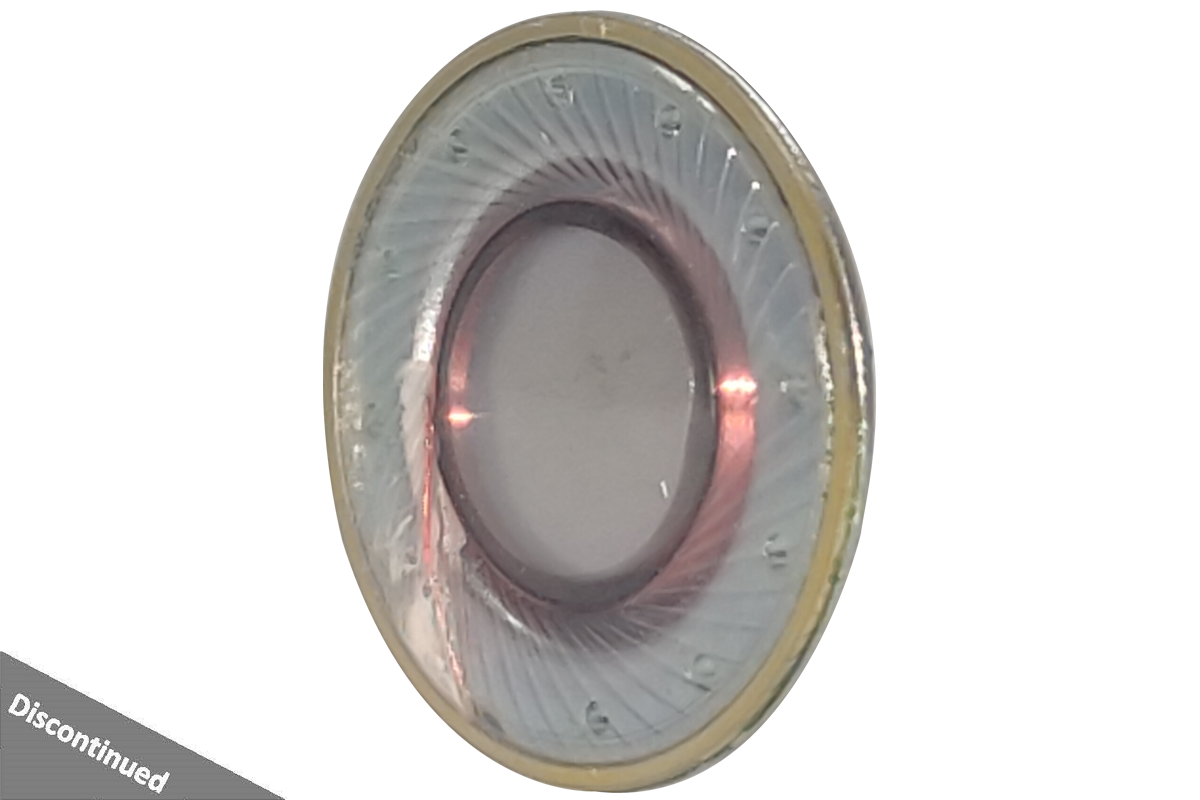

This is a 14.2 mm Transducer, applied the diaphragm of a 9μ PEN, has good effect of high frequency sound, it is suitable for TWS headphones, 16 Ω impedance.

Family
Range

Features
Transducer CY-Ω-C
Insert Molding NON
Injection Basket/Yoke NON
YOKE Ø mmSPCC/CR3
Magnet Ø mmNdFeB-N35
Washer (T-Plater) Ø mm SPCC/CR3
PCB Ø mm FR4
Diaphragm Ø mm(MX)
Voice Coil Ø mmDCCA
Grill Cover Ø mm SUS
Mesh NBC
Transducers Properties
Transducer Ø mm
D.C.R. ±%Ω
Sensitivity ±dB (at 1KHz 1mW)
Frequency Response KHZ
Distortion THD (KHz) ≤5% Rated
Rated Input Power mW
Max Input Power mW
Buzz and Rattles Shall Be Rated Input Power
3mW Program Source Or
Sine Wave
