Headphone
40mm PET Over Ear
ASDFD0008-3201
Features
40mm Transducer Frame.
16.5mm CCAW Voice Coil
19u PET
Parameters
Size
40 mm
Fs
80 Hz
Sensitivity
124 dB

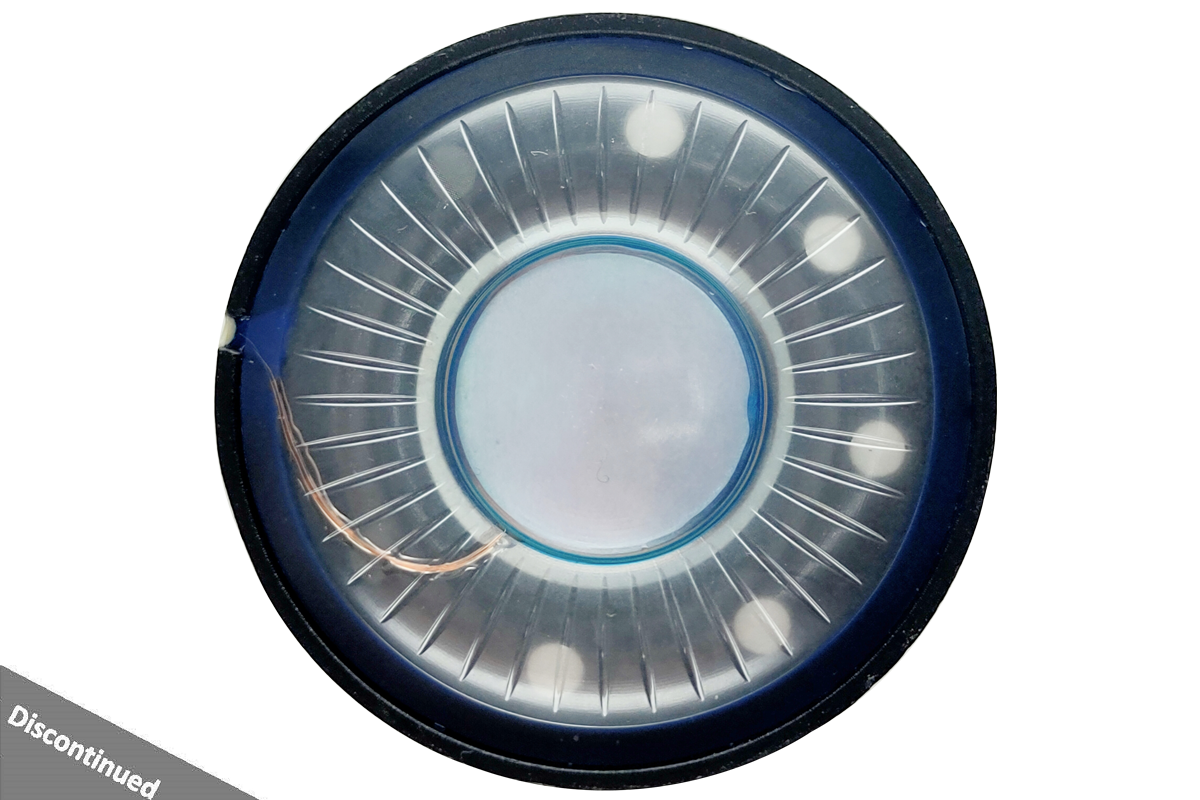

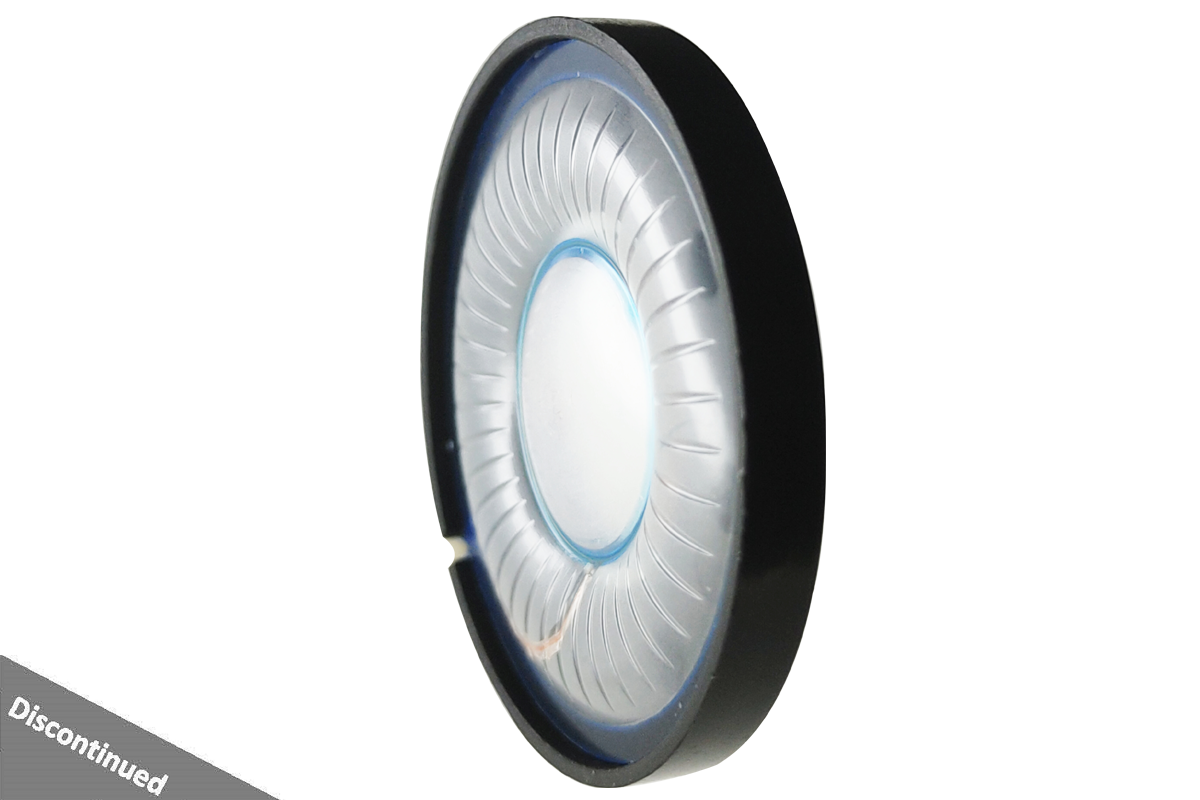

This is a 40 mm Transducer, 19 u PET diaphragm, obtained the good effect of intermediate frequency, and has a lower distortion, it is applicable to the OVER the EAR and communications headset, 32 Ω impedance.
Family
Range
| Features | |
|---|---|
| Transducer | CY-Ω-C |
| Insert Molding | NON |
| Injection Basket/Yoke | NON |
| YOKE | Ø mmSPCC/CR3 |
| Magnet | Ø mmNdFeB-N35 |
| Washer (T-Plater) | Ø mm SPCC/CR3 |
| PCB | Ø mm FR4 |
| Diaphragm | Ø mm(MX) |
| Voice Coil | Ø mmDCCA |
| Grill Cover | Ø mm SUS |
| Mesh | NBC |
| Transducers Properties | |
|---|---|
| Transducer | Ø mm |
| D.C.R. | ±%Ω |
| Sensitivity | ±dB (at 1KHz 1mW) |
| Frequency Response | KHZ |
| Distortion | THD (KHz) ≤5% Rated |
| Rated Input Power | mW |
| Max Input Power | mW |
| Buzz and Rattles | Shall Be Rated Input Power 3mW Program Source Or Sine Wave |
