3.5" Ultra-Thin Aluminum Cone Woofer

AUGWL0009-JN01

Features
3.5", Plastic Frame
1" CCAW Voice Coil, Aluminum Former
Aluminum Cone, Rubber Surround
Dual Neodymium Magnet Motor System
Slim Design (Patented)
Pole Piece Vent, Low Distortion(<3%)
Size
3.5 Inch
Fs
95 Hz
Re
2.48 Ohms
Sensitivity
87 dB
Quality Factor
0.48 Qts
Rated Power
10 W
  • Description
  • Simulation
  • Measure Chart
  • Specification
  • Mechanical Drawing
SPEC SHEET

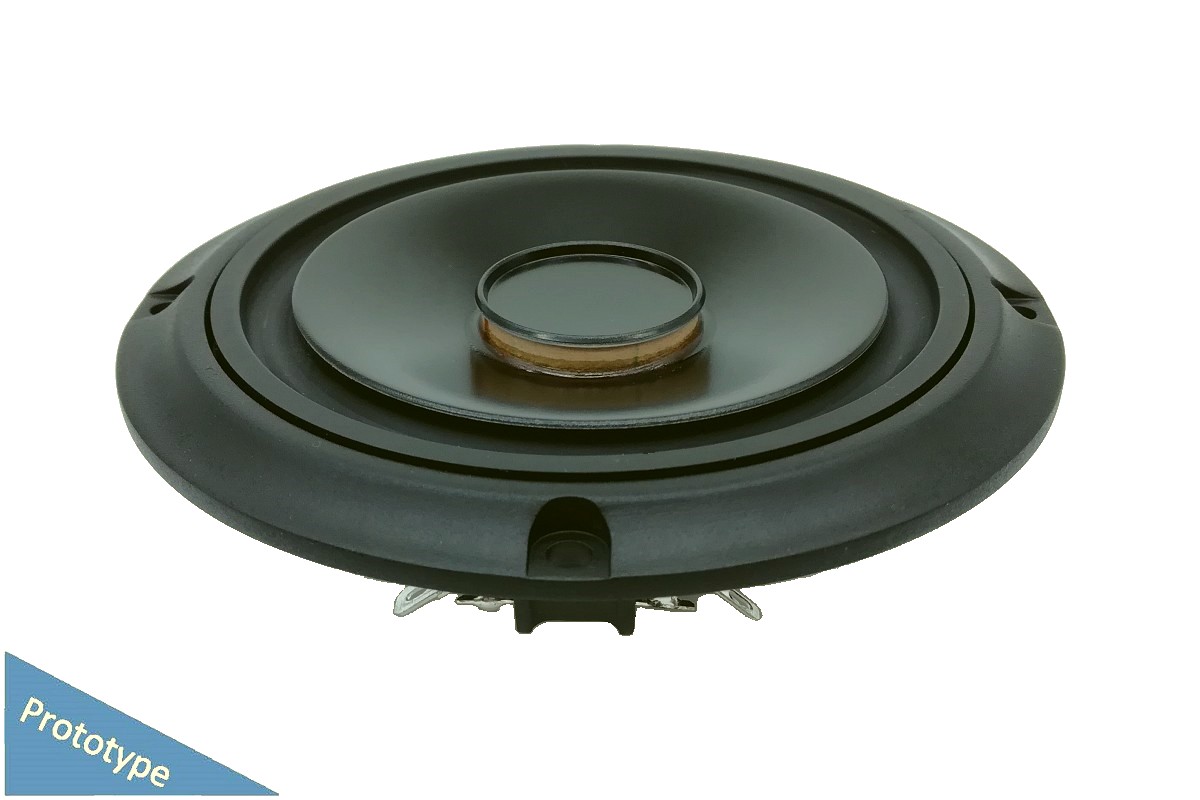

This 3.5 inch Woofer, The main design features include a mineral-filled plastic basket, and a venting dual Neodymium magnet motor system. Ferro-fluid cooled to further lowering the distortion level. The main cone body uses black Anodized Aluminium cone , with one piece Anodized Aluminium dust cap, which is directly couple to voice coil. This product is designed for portable and compact applications.

Family
Range
AUGWL0009-JN01

T-S Parameters
Resonance frequency [fs] 94.7 Hz
Mechanical Q factor [Qms] 3.894
Electrical Q factor [Qes] 0.54
Total Q factor [Qts]  0.477
Force factor [Bl] 5.019 Tm
Mechanical resistance [Rms] 1.416 kg/s
Moving mass [Mms]  9.267 g
Compliance [Cms] 0.305 mm/N
Effective diaph. diameter [D]  74 mm
Effective piston area [Sd] 43.01 cm²
Equivalent volume [Vas] 0.7977 l
Sensitivity (2.83V/1m)  87 dB
Ratio Bl/√Re 3.19 N/√W
Ratio fs/Qts 198.5 Hz
Electrical Data
Nominal impedance [Zn]  3 Ω
Minimum impedance [Zmin]  2.45 Ω
Maximum impedance [Zo] 11.18 Ω
DC resistance [Re] 2.48 Ω
Voice coil inductance [Le]  0.378 mH
Power Handling
100h RMS noise test (IEC 18.4) 10 W
Long-term max power (IEC 18.2) 15 W
Voice Coil & Magnet Data
Voice coil diameter 25.4 mm
Voice coil height 11.5 mm
Voice coil layers 4
Height of gap 4.0 mm
Linear excursion ± 3.75 mm
Max mech. excursion ± 5.5 mm
Unit weight 0.175 kg
